Slate Reroof — Occupied Property

ClientMajor social housing landlord

ScopeFull strip and reroof, interlocking slate

OccupancyOccupied throughout

UnderlayPermavent breathable membrane

Scope of Works

Scaffold with edge protection and debris netting erected to working elevations.
Existing roof covering, battens and underlay stripped and removed.
Roof structure inspected on exposure; timber condition assessed.
Permavent breathable underlay installed with correct laps and eaves detail.
New treated softwood battens, BS 5534 graded, fixed to gauge.
Interlocking slate-grey tiles laid from eaves to ridge; ridge and verge details completed.
Abutment and vent pipe flashings dressed and sealed.
Rainwater goods renewed. Waste segregated and removed; site handed back clear.

Two Roof Types, One Standard

This property was reroofed in interlocking slate over a Permavent membrane. A companion property on the same programme was reroofed in concrete interlocking tiles over a Cromar Vent3 membrane. Different coverings, different substrates, the same sequence and the same standard of workmanship — stripped, inspected, underlaid, battened to gauge, and laid true.

Sequence

Membrane to Completion

Permavent breathable membrane and treated battens with tiles stacked out — 01 Permavent breathable underlay laid, treated battens fixed to gauge, tiles stacked out ready.

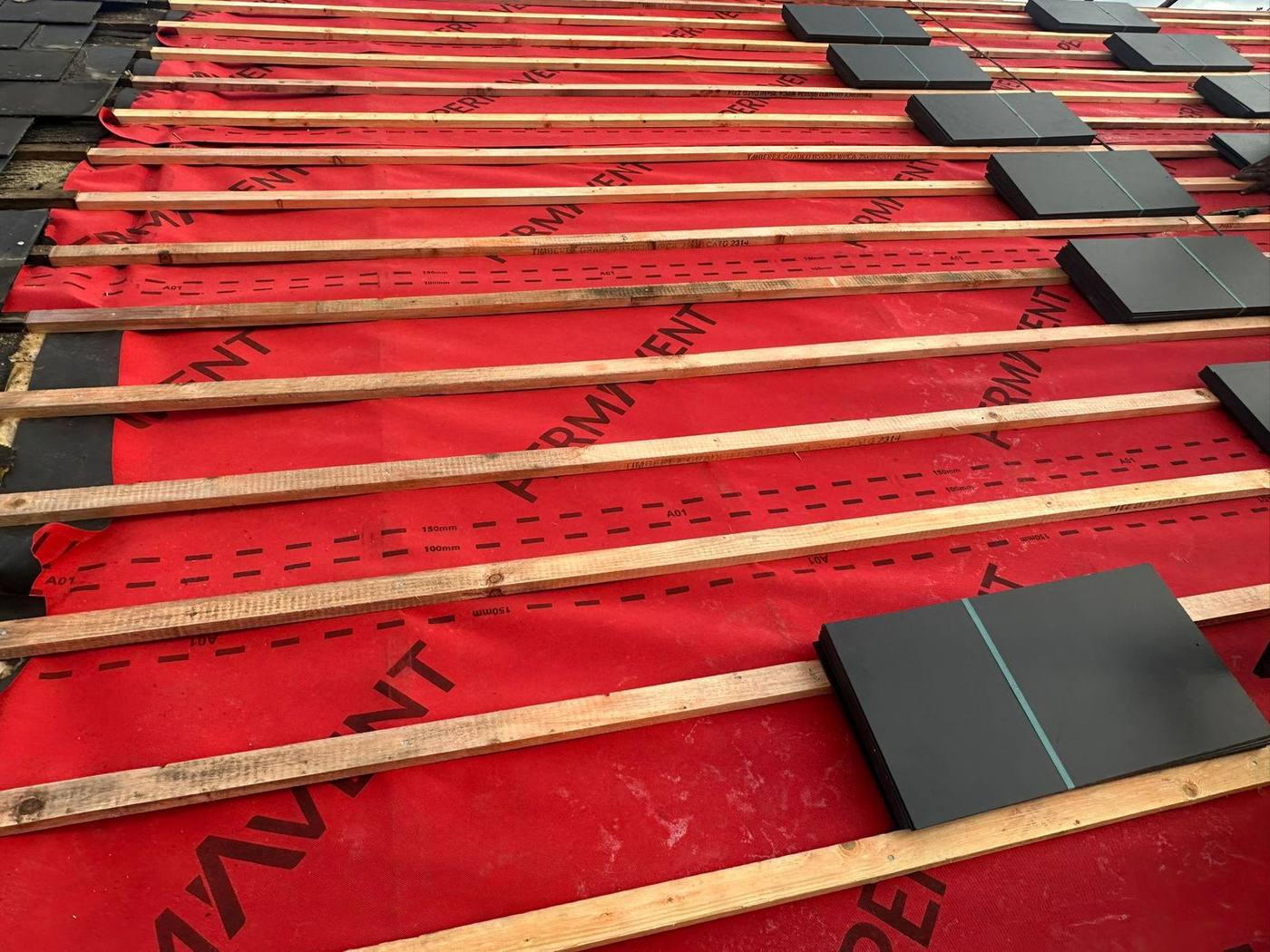

Battens and membrane across the roof slope — 02 Battens run across the full slope. Loading is spread rather than concentrated.

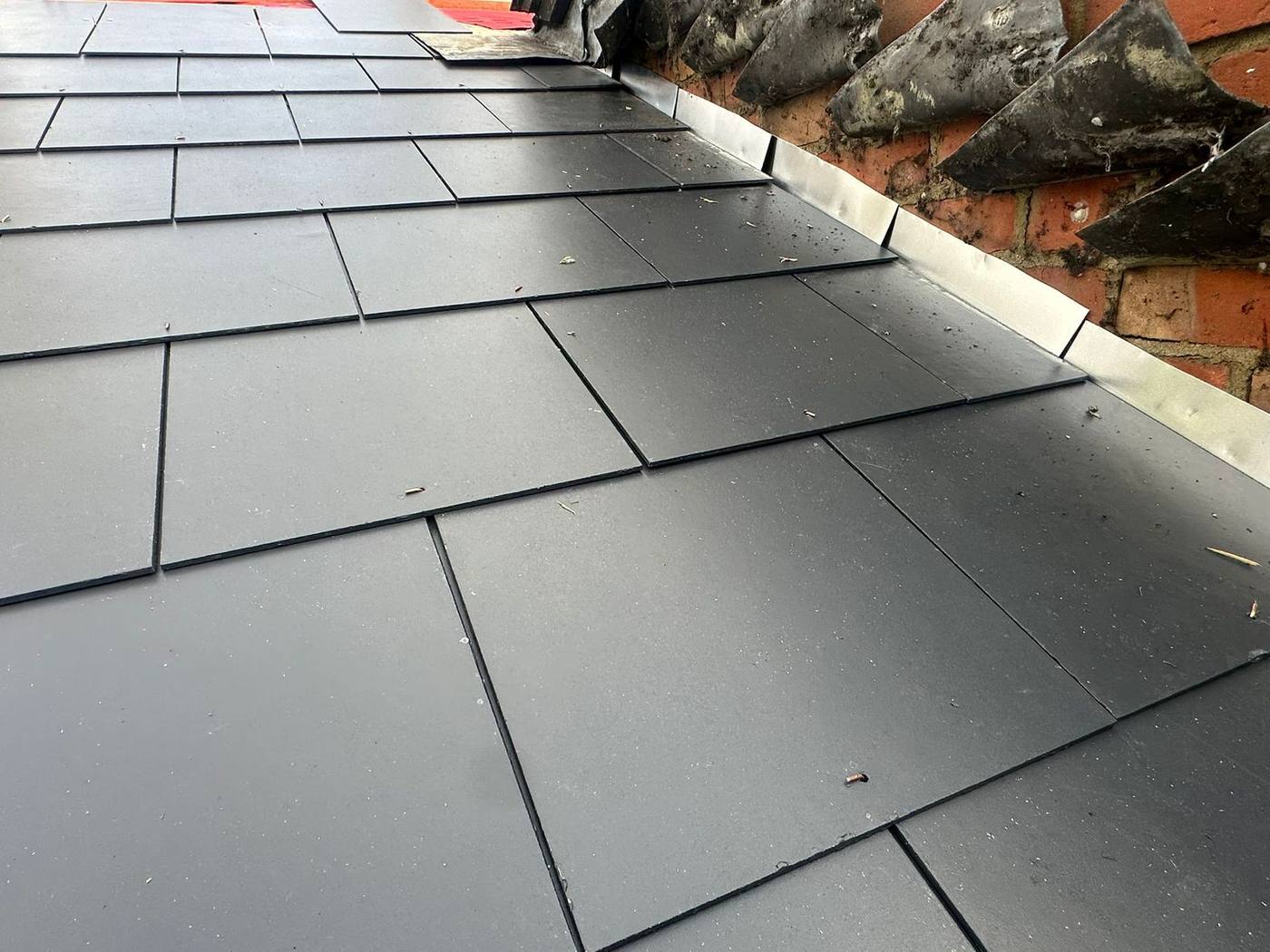

Close detail of battens, membrane and tiles — 03 Batten gauge and membrane lap detail.

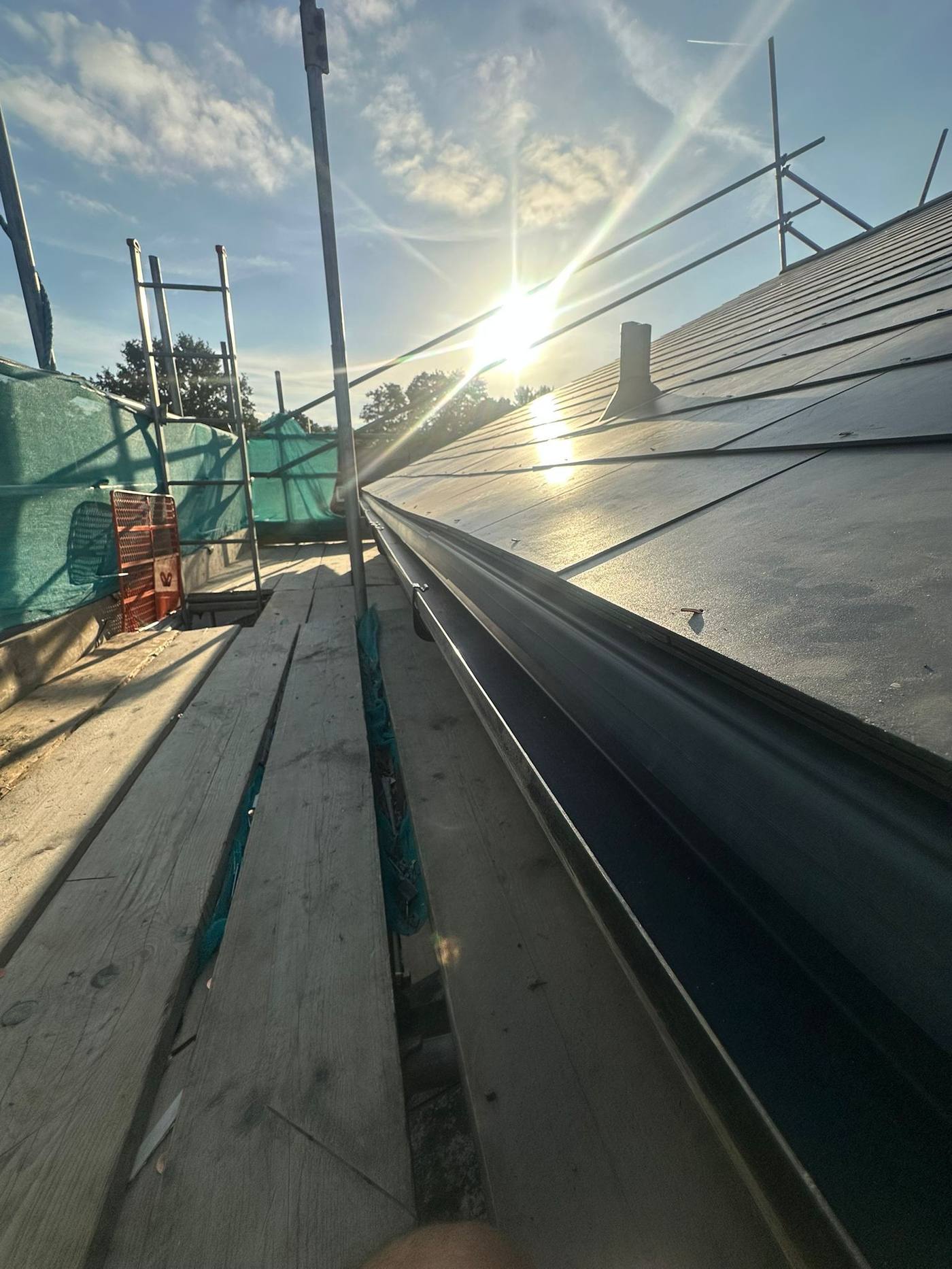

Abutment flashing detail against brickwork — 04 Abutment flashing dressed against the host brickwork.

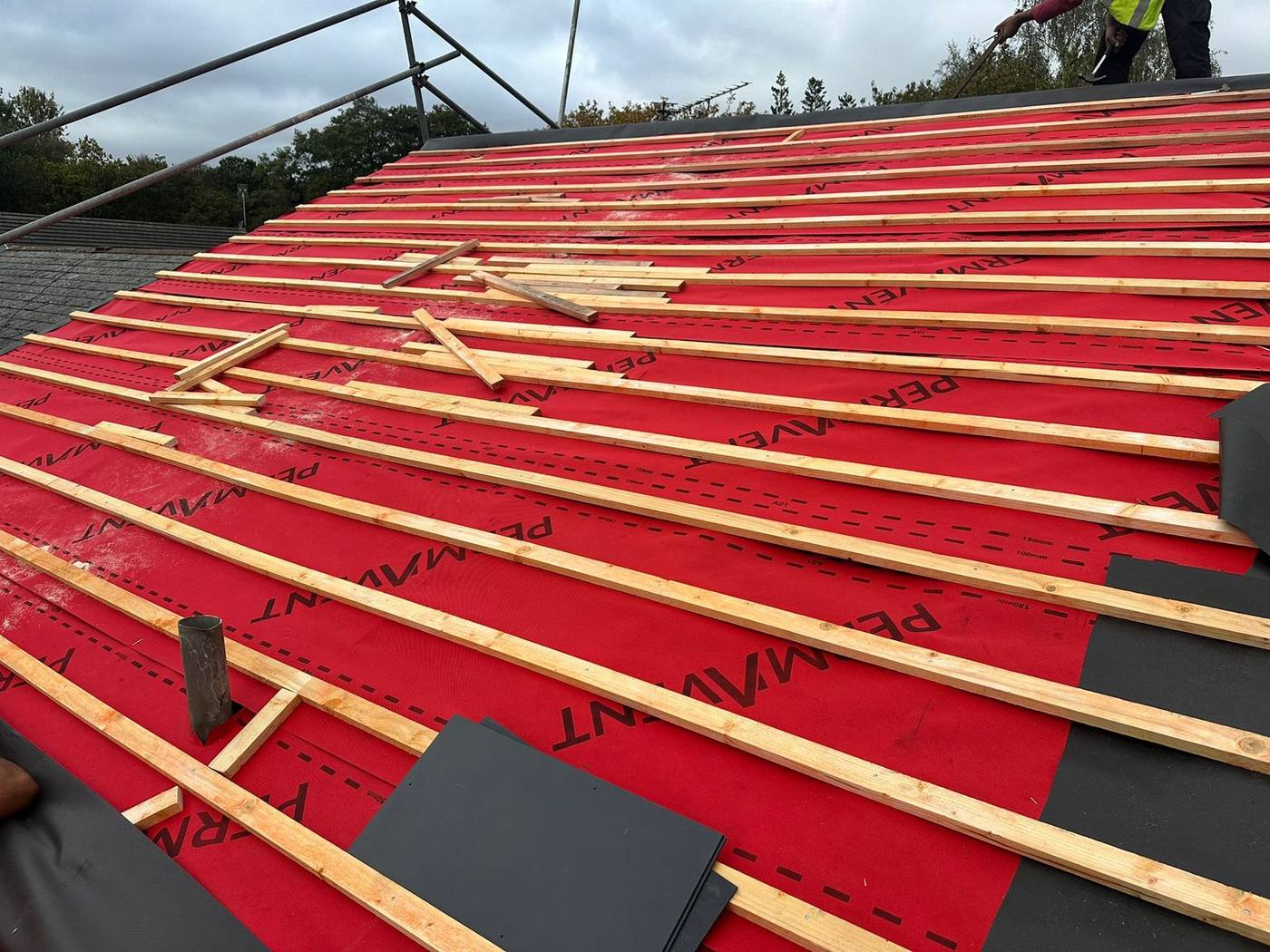

New eaves and rainwater goods — 05 New rainwater goods installed to the eaves line.

Completed slate roof slope — 06 Completed slope. Courses laid true, consistent gauge.

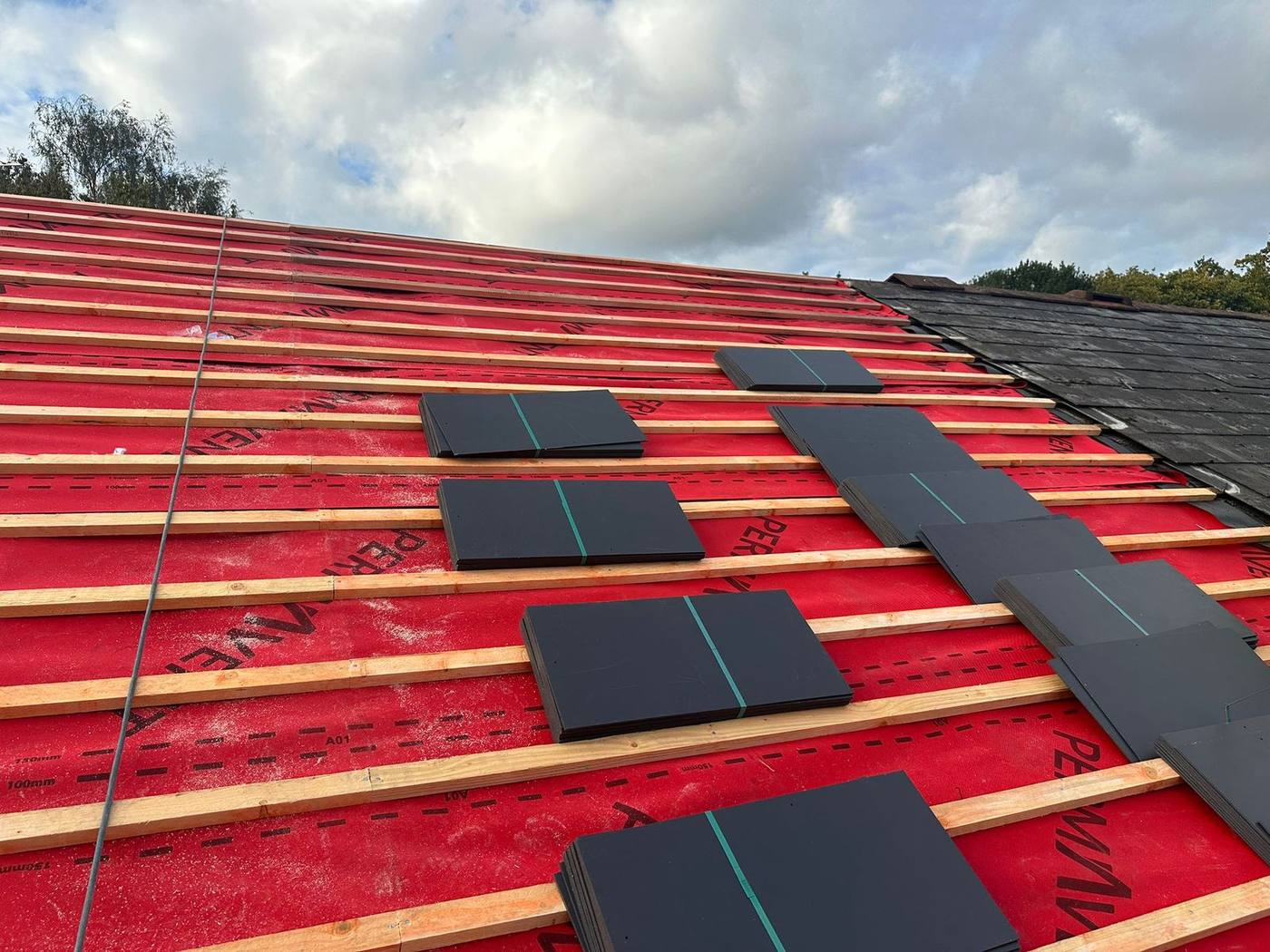

Completed roof with vent pipe flashing — 07 Vent pipe flashing dressed and sealed into the covering.

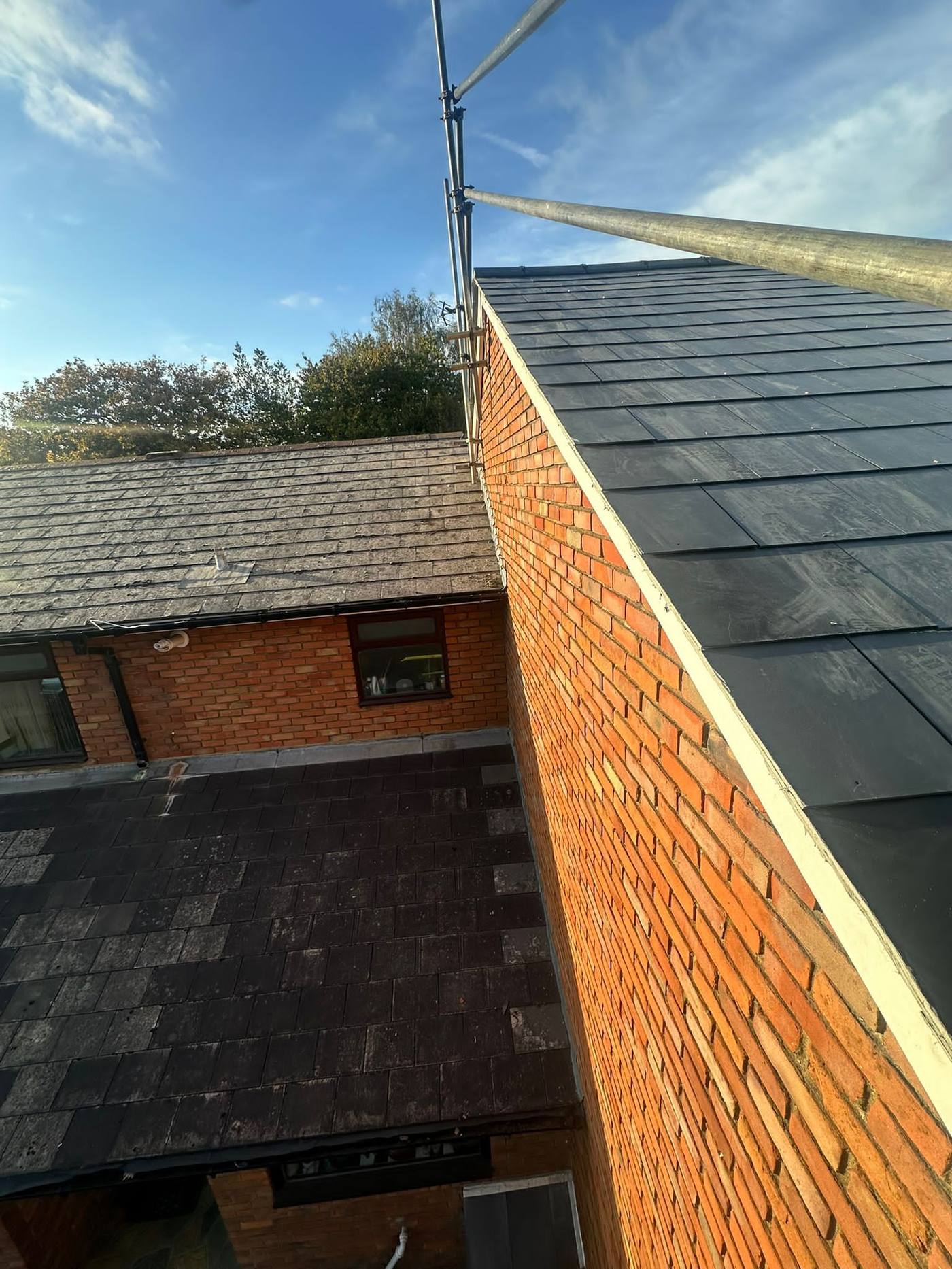

Completed reroof — 08 Complete. Roof handed over and signed off.
